In the high-voltage world of substations and switching stations, most utility teams are laser-focused on major risks—arc flash hazards, grounding failures, relay misoperations, and transformer protection. But the most dangerous threat is often the one hiding in plain sight: exposed conductors within breaker cabinets.
These seemingly small wiring anomalies can quietly bypass QA/QC inspections, remain undocumented through commissioning, and introduce an unacceptable level of risk—especially when they’re routed near energized components or sharp panel edges. For U.S. electric utilities pushing to modernize infrastructure and harden substations, overlooking these micro-level hazards isn’t just a technical flaw—it’s an operational liability.
Small Wire, Big Problem: The Anatomy of a Breaker Wiring Hazard
Substation breakers are among the most mission-critical components in the transmission and distribution (T&D) network. They operate in high-stress environments, where split-second actuation and insulation integrity are essential for safety and reliability.
But behind those steel doors and nameplates lies a tangle of secondary control wiring. Over time, and especially during field retrofits or late-stage commissioning changes, conductors can be:
- Pulled taut across unfinished panel slots
- Left partially stripped or poorly terminated
- Routed without grommets through sharp steel cutouts
- Stressed under load without adequate tie-downs

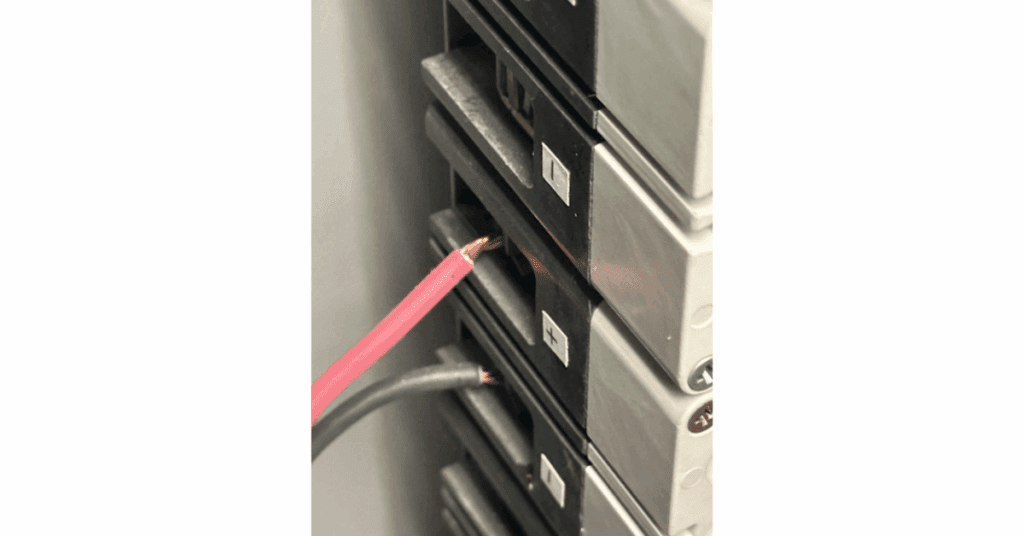

The result? A conductor insulation breach that exposes copper wiring—often within inches of grounded or energized components. It’s a slow-building hazard with high-speed consequences: arcing, breaker misfire, ground faults, or even injury to unsuspecting technicians.
Why These Hazards Slip Through the Cracks
Despite rigorous construction oversight processes, exposed conductor issues often remain undetected until it’s too late. Here’s why:
1. QA/QC Blind Spots
QA/QC inspectors may focus on structural or protective relaying checks, not internal wire routing inside the panel—especially if it’s a manufacturer-provided assembly.
2. Assumption of OEM Integrity
Breakers arriving from manufacturers are assumed “field-ready,” but final conductor routing and slot finishes are often completed during on-site installation—without proper reintegration into QA scope.
3. Access Complexity
Breaker cabinets often require careful disassembly or special clearance to inspect fully. In compressed commissioning timelines, these areas may go unchecked.
4. No Formal Wiring Walkdown Protocol
Unlike relay testing or grounding verification, there’s often no dedicated, documented step for wiring slot integrity in the QA process.
This lack of process clarity leaves room for dangerous assumptions—and dangerous wiring.
Case Study: Exposed Conductor Found in Breaker Cabinet During Final QA
On a recent substation build, one of the largest utilities in the U.S. was preparing for final acceptance testing when Think Power Solutions’ QA team noticed something unusual: a small, sharp-edged slot in the rear of a breaker cabinet where control wiring exited the panel. Upon closer inspection, it was clear that:
- The wire was routed directly against an unprotected steel slot
- The conductor insulation had partially worn away, revealing exposed copper
- No grommet or protection had been installed to prevent abrasion
Had the breaker been energized as-is, the exposed conductor could have easily made contact with grounded steel—posing a severe arc flash risk and equipment damage.
What Think Power Did:
- Immediately tagged the equipment and escalated the issue to the utility’s commissioning authority
- Documented the hazard with annotated photos and included it in the QA punch list
- Recommended corrective action: re-routing the conductor, adding a protective grommet, and retesting the breaker for continuity and insulation integrity
Outcome:
The utility avoided a potentially catastrophic failure. More importantly, they recognized a systemic gap in breaker cabinet inspections—and moved to embed this check in future QA/QC protocols.
Read the full case study here ›
The Systemic Fix: Making Wiring Slot Inspections Standard Practice
Field-based risk prevention like this shouldn’t rely on hero moments. Instead, utilities should embed breaker wiring integrity into the project lifecycle—especially in the QA/QC and energization readiness phases.
Here’s what that looks like:
1. Breaker Cabinet Wiring Checklist
Add a line-by-line visual inspection checklist for all breaker panel wiring exits—document grommet use, tie-down points, insulation condition, and slack allowances.
2. Dedicated Wiring Walkdowns
Schedule a formal walkdown for secondary wiring and panel routes before commissioning sign-off. Require inspector initials.
3. OEM-to-Field Transition Protocol
When OEM equipment is field-assembled or modified, reintroduce those components into the QA/QC process—don’t assume integrity.
4. Hazard Capture in Inspection Software
Use digital QA tools that allow photos, comments, and annotations at the wiring slot level—not just device names or structure numbers.
5. Training and Awareness
Educate both engineers and inspectors on what to look for: improper wire bend radius, unprotected slot contact, and signs of abrasion.
The ROI of Preventing One Arc Flash
Exposed conductors are more than a maintenance headache—they’re a liability multiplier. A single wiring breach inside a substation breaker can trigger:
- Equipment damage worth hundreds of thousands
- Work stoppages across multiple teams
- OSHA recordables and potential legal exposure
- Loss of public and regulatory trust in capital program quality
- Crew hesitation and safety fear during future commissioning
By embedding a simple wiring integrity protocol into your QA/QC process, you convert one of the industry’s most overlooked risks into one of its most easily preventable wins.
Reliability Starts with the Details
In a world of megaprojects, big budgets, and grid-scale upgrades, it’s often the smallest oversight that carries the most risk. Exposed control conductors in breaker cabinets may seem like a footnote in a construction report—but they can become the headline of a failure investigation.
Our casework with one of the nation’s top utilities proves that proactive, field-embedded QA/QC isn’t just about checking boxes—it’s about asking better questions and catching the critical 1% most people miss.If you’re building substations, switching stations, or performing breaker installations across your transmission or distribution system—make sure you’re not blind to the wire that can take it all down.
